1. Dưỡng kiểm đo lỗ EH-1A

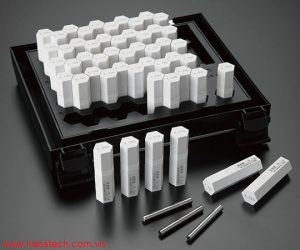

Dưỡng kiểm đo lỗ EH Series Eisen – Nhật

Specifications
Please refer to the EP, ECP and FC series for information on accuracy and other specifications.
Sizes are indicated on the plastic cases for gauges up to 0.995mm and are laser engraved on gauges 1.00mm and larger.
The class 0 pin gauges are provided with measurement data.

Details of series

Set No. Step(mm) Set
Size(mm)
Number
of pins
EH-0A 0.005mm 0.10 0.105… 0.245 0.25 31
EH-0B 0.005mm 0.25 0.255… 0.495 0.50 51
EH-0C 0.005mm 0.50 0.505… 0.745 0.75 51
EH-0D 0.005mm 0.75 0.755… 0.995 1.00 51
EH-1A 0.005mm 1.00 1.005… 1.245 1.25 51
EH-1B 0.005mm 1.25 1.255… 1.495 1.50 51
EH-1C 0.005mm 1.50 1.505… 1.745 1.75 51
EH-1D 0.005mm 1.75 1.755… 1.995 2.00 51
EH-2A 0.005mm 2.00 2.005… 2.245 2.25 51
EH-2B 0.005mm 2.25 2.255… 2.495 2.50 51
EH-2C 0.005mm 2.50 2.505… 2.745 2.75 51
EH-2D 0.005mm 2.75 2.755… 2.995 3.00 51
EH-3A 0.005mm 3.00 3.005… 3.245 3.25 51
EH-3B 0.005mm 3.25 3.255… 3.495 3.50 51
EH-3C 0.005mm 3.50 3.505… 3.745 3.75 51
EH-3D 0.005mm 3.75 3.755… 3.995 4.00 51
EH-4A 0.005mm 4.00 4.005… 4.245 4.25 51
EH-4B 0.005mm 4.25 4.255… 4.495 4.50 51
EH-4C 0.005mm 4.50 4.505… 4.745 4.75 51
EH-4D 0.005mm 4.75 4.755… 4.995 5.00 51
EH-5A 0.005mm 5.00 5.005… 5.245 5.25 51
EH-5B 0.005mm 5.25 5.255… 5.495 5.50 51
EH-5C 0.005mm 5.50 5.505… 5.745 5.75 51
EH-5D 0.005mm 5.75 5.755… 5.995 6.00 51
EH-6A 0.005mm 6.00 6.005… 6.245 6.25 51
EH-6B 0.005mm 6.25 6.255… 6.495 6.50 51
EH-6C 0.005mm 6.50 6.505… 6.745 6.75 51
EH-6D 0.005mm 6.75 6.755… 6.995 7.00 51
EH-7A 0.005mm 7.00 7.005… 7.245 7.25 51
EH-7B 0.005mm 7.25 7.255… 7.495 7.50 51
EH-7C 0.005mm 7.50 7.505… 7.745 7.75 51
EH-7D 0.005mm 7.75 7.755… 7.995 8.00 51
EH-8A 0.005mm 8.00 8.005… 8.245 8.25 51
EH-8B 0.005mm 8.25 8.255… 8.495 8.50 51
EH-8C 0.005mm 8.50 8.505… 8.745 8.75 51
EH-8D 0.005mm 8.75 8.755… 8.995 9.00 51
EH-9A 0.005mm 9.00 9.005… 9.245 9.25 51
EH-9B 0.005mm 9.25 9.255… 9.495 9.50 51
EH-9C 0.005mm 9.50 9.505… 9.745 9.75 51
EH-9D 0.005mm 9.75 9.755… 9.995 10.00 51
EH-10A 0.005mm 10.00 10.005… 10.245 10.25 51
EH-10B 0.005mm 10.25 10.255… 10.495 10.50 51
EH-10C 0.005mm 10.50 10.505… 10.745 10.75 51
EH-10D 0.005mm 10.75 10.755… 10.995 11.00 51
EH-11A 0.005mm 11.00 11.005… 11.245 11.25 51
EH-11B 0.005mm 11.25 11.255… 11.495 11.50 51
EH-11C 0.005mm 11.50 11.505… 11.745 11.75 51
EH-11D 0.005mm 11.75 11.755… 11.995 12.00 51
EH-12A 0.005mm 12.00 12.005… 12.245 12.25 51
EH-12B 0.005mm 12.25 12.255… 12.495 12.50 51
EH-12C 0.005mm 12.50 12.505… 12.745 12.75 51
EH-12D 0.005mm 12.75 12.755… 12.995 13.00 51
