Dưỡng kiểm đo lỗ ER-1
Liên hệ để lấy báo giá
Mã sản phẩm:
Gọi ngay để đặt hàng (+84) 977.641.272
Mở cửa: (Từ 8h00 đến 21h00 hàng ngày)
CHI TIẾT SẢN PHẨM

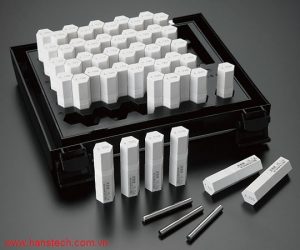

1. Dưỡng kiểm đo lỗ ER-1
Dưỡng kiểm đo lỗ ER Series Eisen – Nhật
Specifications
Please refer to the EP for information on accuracy and other specifications.
Sizes are indicated on the plastic cases for gauges up to 0.995mm and are laser engraved on gauges 1.00mm and larger.
The class 0 pin gauges are provided with measurement data.
Details of series
Set No. | Step(mm) | Set Size(mm) |
Number of pins |
ER-1 | 0.1mm | 0.20 0.30… 4.90 5.00 | 49 |
ER-2 | 0.1mm | 5.00 5.10… 9.90 10.00 | 51 |
ER-3 | 0.1mm | 10.00 10.10… 14.90 15.00 | 51 |
ER-4 | 0.1mm | 15.00 15.10… 19.90 20.00 | 51 |
· ※Individual gauges with diameters of φ0.2~φ10.005 can all be used as master pin gauges (class 0).
· ※Individual gauges with diameters of φ10.01 or larger are standard pin gauges (class 1).
