Dưỡng kiểm đo lỗ EX Series
Liên hệ để lấy báo giá
Mã sản phẩm:
Gọi ngay để đặt hàng (+84) 977.641.272
Mở cửa: (Từ 8h00 đến 21h00 hàng ngày)
CHI TIẾT SẢN PHẨM
Dưỡng kiểm đo lỗ EX Series Eisen – Nhật

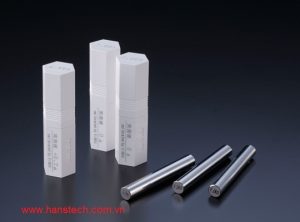

The EX series packages include pin gauges in different sizes, except the EP and ECP sizes, ranging from 0.201 to 9.999 mm in 0.001 mm steps. The series offers no standard package; special combinations are available on request.
Specifications
| Set Range(mm) | Length(mm) | Tolerance | Roundness/Cylindricity | HRC Hardness |
| 0.201… 0.999 | 40 | ±0.5μm | 0.3μm | 58 or more |
| 1.001… 9.999 | 50 |
The nominal sizes are indicated on the plastic case for gauges up to 0.999 mm; the nominal sizes on the pin gauges, as well gauges in sizes 1.001 mm and larger, are laser-engraved.
※All gauges in the EX series are master pin gauges (0 class).
Dưỡng kiểm đo lỗ EX Series
