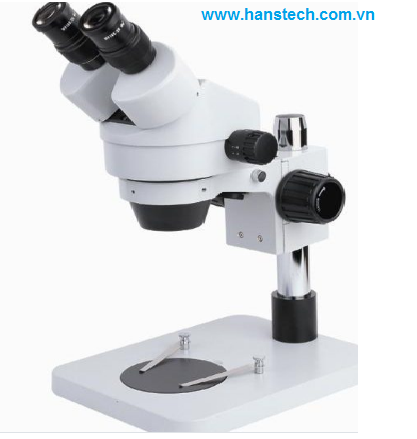

Sunny-Soptop Stereo Microscope
Liên hệ để lấy báo giá
Mã sản phẩm:
Gọi ngay để đặt hàng (+84) 977.641.272
Mở cửa: (Từ 8h00 đến 21h00 hàng ngày)
CHI TIẾT SẢN PHẨM
High quality optical performance, various accessories and diversified combination specification. To meet high-precision requirements on modern biology, medicine, scientific research, inspection lines in modern electronics and other technology industries
■ High quality optical system, and optical components coated with special
coating created a high-quality optical system.
■ Standard magnification 7X~45X. Use optional auxiliary lens, the magnification
can be 3.5X~180X
■ Long working distance to create enough space for the uses
■ Suit to ergonomic design, feel less fatigue when long time use
Specifications
| Eyepiece | Wide field high eyepiont eyepiece WF10X/20mm（can mount micrometer） |
| Wide field high eyepiont eyepiece（can mount micrometer） | |
| Wide field high eyepiont eyepiece WF20X/10mm（can mount micrometer） | |
| Viewing Head | SZM7045：Binocular head, 45° inclined, 360°rotatable, zoom objective 0.7X-4.5X, working distance 100mm. inter-pupillary range 54~76mm, both two tube diopter adjustment(±5) |
| SZM-7045TR trinocular head, 45° inclined, 360°rotatable, can mount TV apater | |
| SZM-7045V digital head, built-in 450 thousand pixels CCD, 480 TVLINES | |
| Auxiliary Lens | 0.5X/165mm. 0.75X/105mm. 1.5X/45mm. 2X/30mm. |
| Focus | SZMA1 focus arm, two focusing knobs are with tension adjustable, adjust range 50mm. |
| SZA2 industry bound focus arm 1 (industry exclusive use) | |
| SZA3 industry bound focus arm 2 (industry exclusive use) | |
| Stand | SZMST1 pillar type plain stand |
| SZMST2 pillar type transmission stand, top & bottom halogen illuminator 12V15W (brightness adjustment). | |
| SZMST3 pillar type transmission stand, top illuminator with 12V15W halogen bulb, brightness adjustment. bottom illuminator with 7W fluorescent light, fixed brightness | |
| SZSTL1 single arm universal stand | |
| SZSTL2 double arm universal stand | |
| Other light source | Ring light/LED/Fiber |
| Photo device | Photo tube（with PK mount），4X photo eyepiece |
| TV device | 0.35X/0.5X/1.0X C-mount adapter |
| Others | Precision measurement platform, dark field condenser, jewelry clip |
Sunny-Soptop Stereo Microscope
